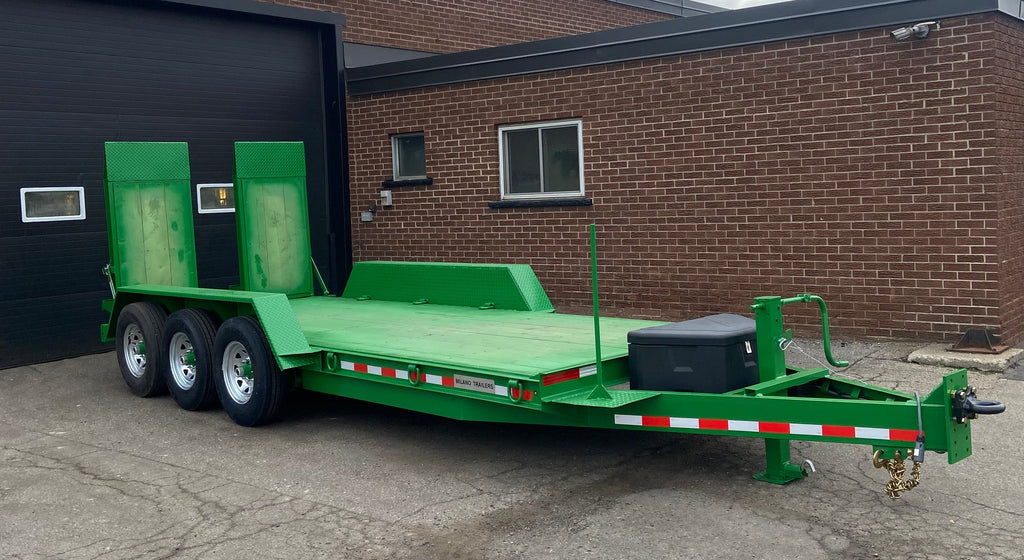

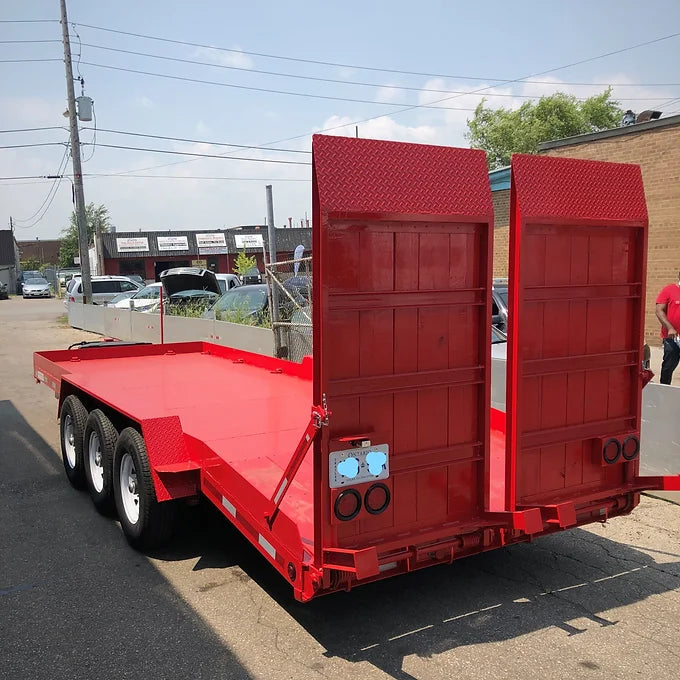

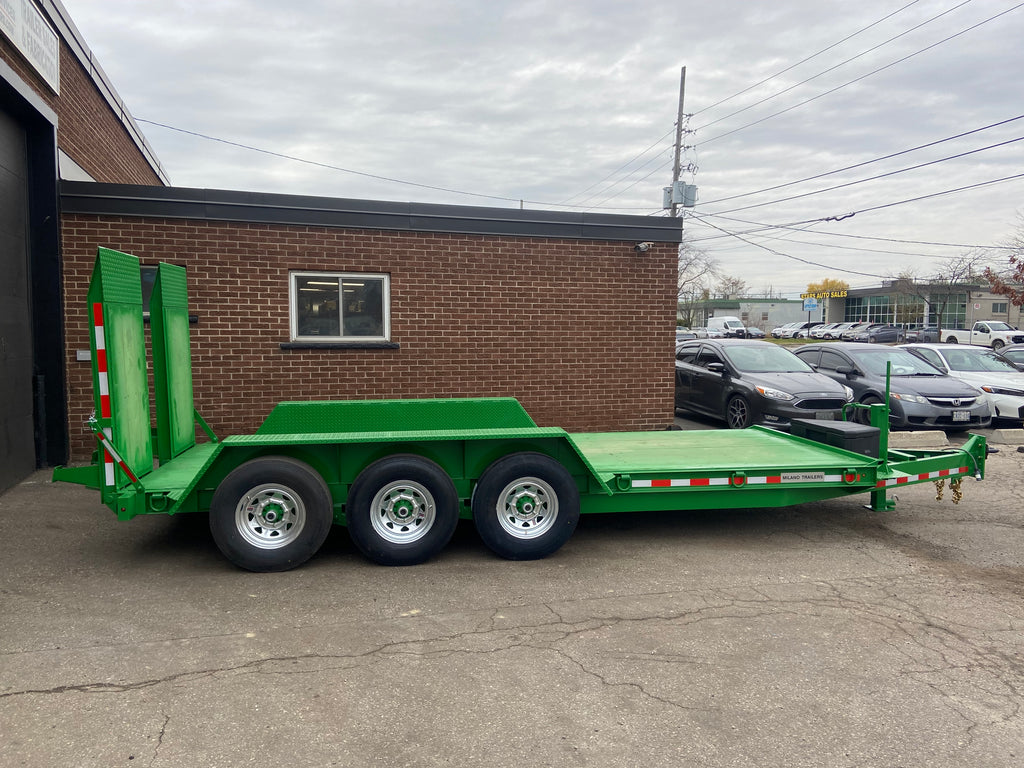

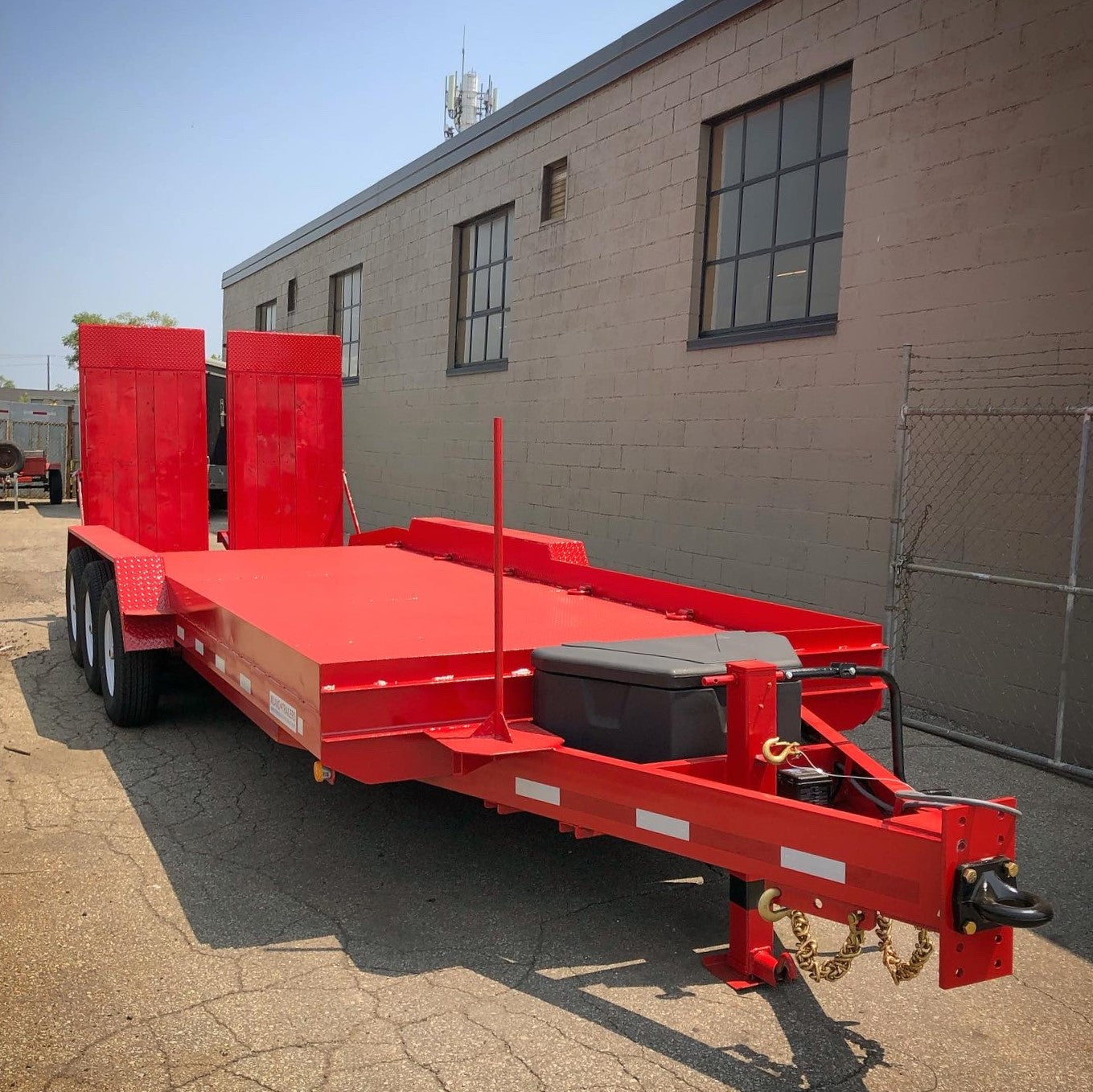

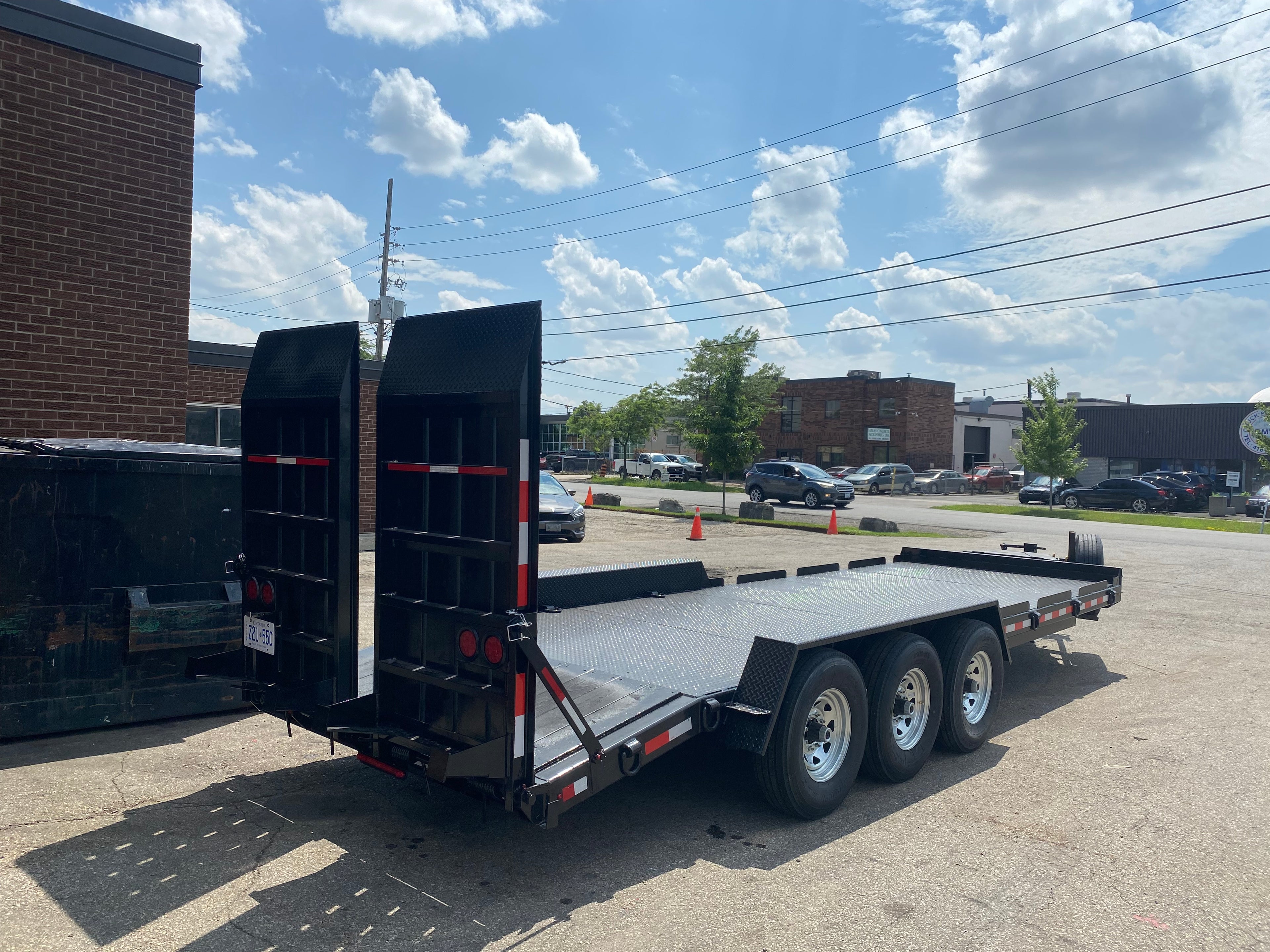

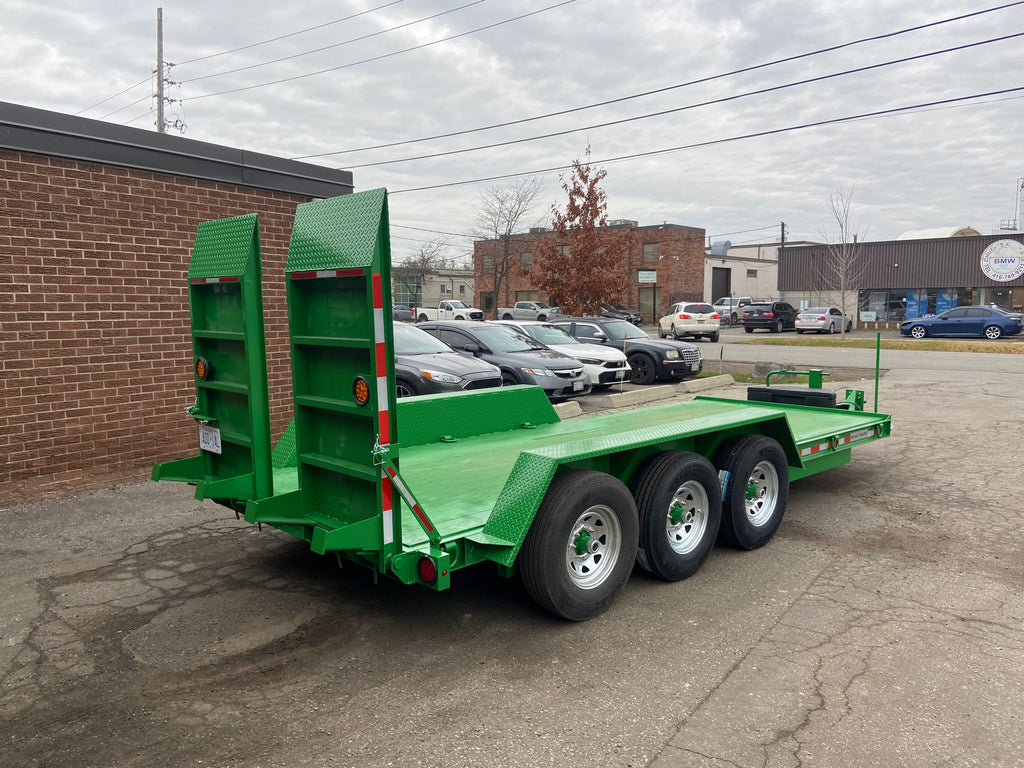

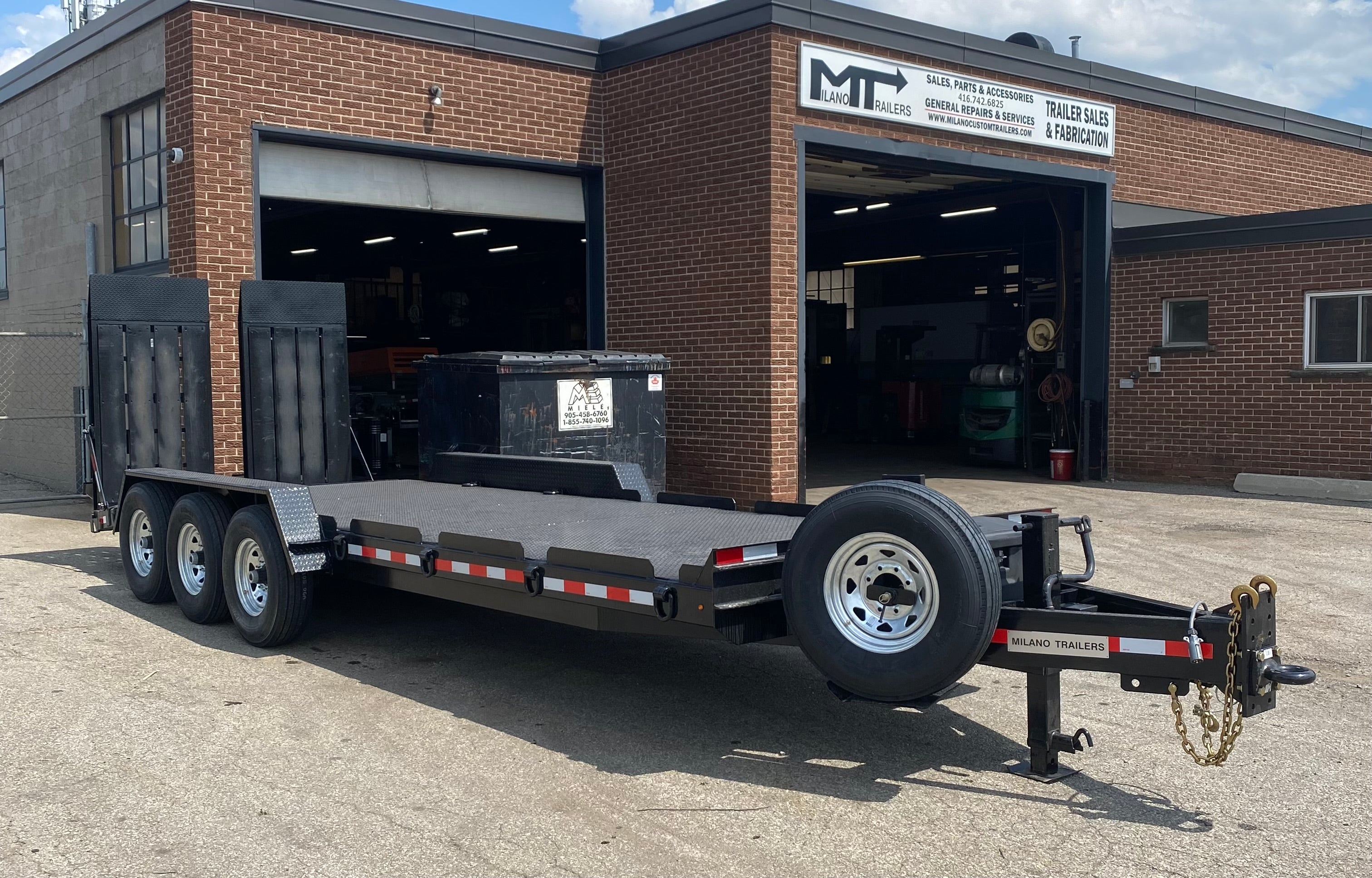

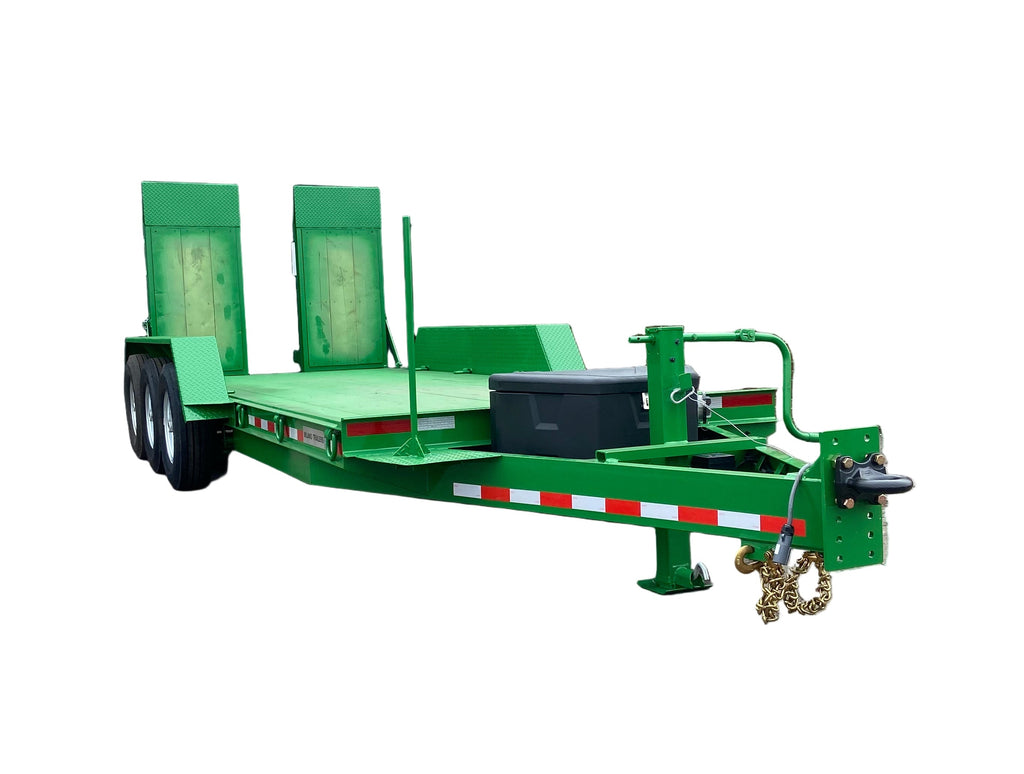

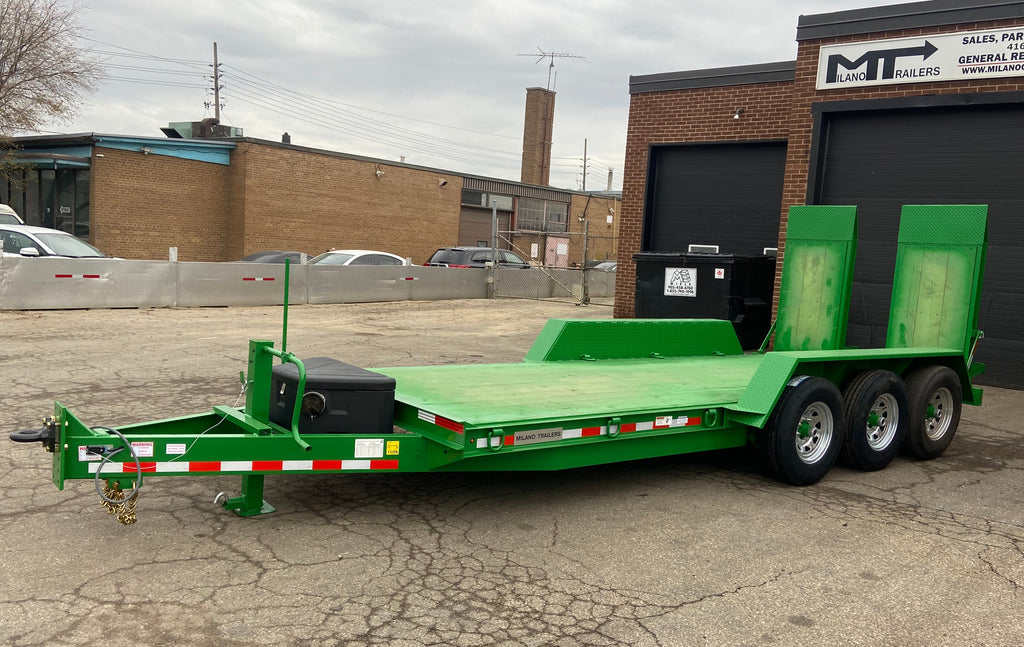

10 Ton Deck Between HD Single Wheel

Trailer Features

• Deck Length: 18’ L X 82” Between Fenders
• Ramps: 5’ L X 30” W Spring Assist & Ramp Supports
• Ramps: Wood Or Steel Angle Tracking (Choice)
• Trailer Decking: Standard 1.5" Wood
• Lighting: LED Lighting W/ Custom Sealed & Loomed Factory Harness
• Axles: 7K Drop Axles (X3 Axles)
• Suspension: Slipper Springs
• Brakes & Drums : 12" X 2" Electric Brakes W/ 8 Bolt Drums
• Landing Gear: 15K Jack W/ Drop Down Leg
• Cargo: Standard Plastic Toolbox On Front Tongue
• Tie Downs: 5/8" D-Rings/Stake Pockets
• Breakaway System
• Safety Chains: 3/8 Grade 70 Chain & 3/8 Hook
• Towing: Adjustable Pintle Or Ball
• Tires Assembly: 235/80/16 (10 ply) On 8 Bolt Steel Rims
• Cross Members: 3" C Channel Spaced Every 12”
• Main Frame:  Heavy Duty 8” Channel
• Fenders: 1/8" Checker Plate
• Paint: Sandblast, 2 Coat Epoxy primer, 2 Coat Urethane Paint
• Document Holder
• Conspicuity Tape Around Whole Trailer

Custom Add On Upgrades & Features If Requested By Customer:

• Custom Hydraulic Ramps

• Galvanized Rims

• Spare Tire Holder
• Custom Pallet/Fork Holder
• 14 Ply Tires
