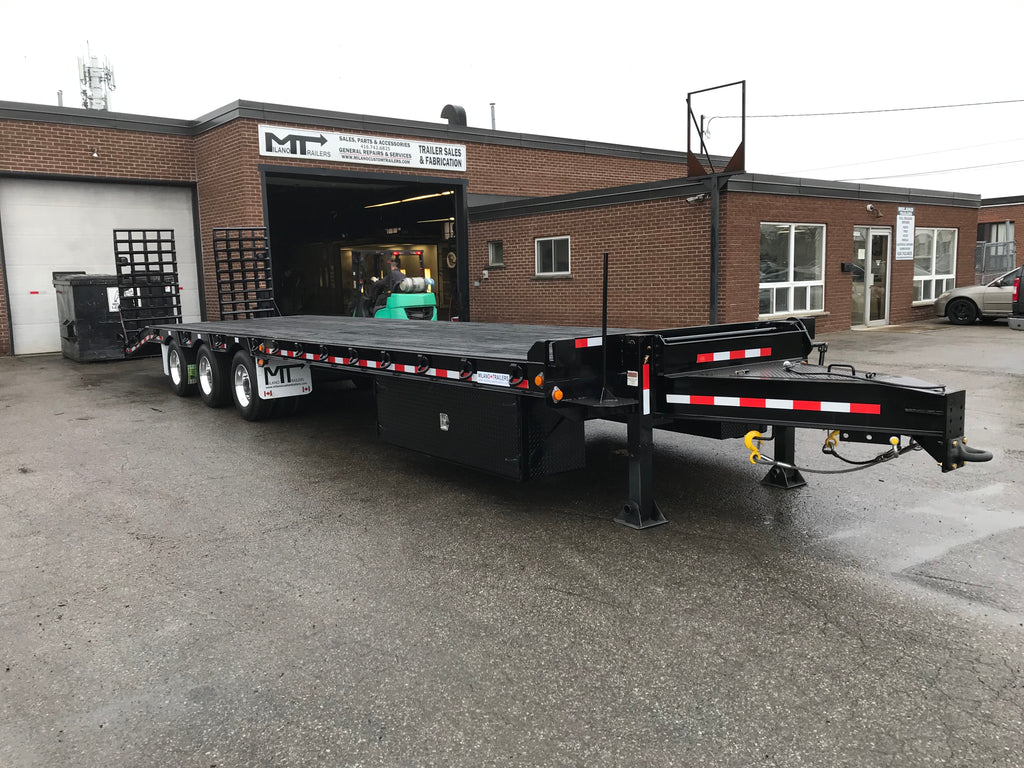

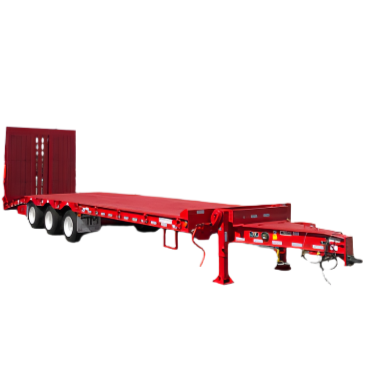

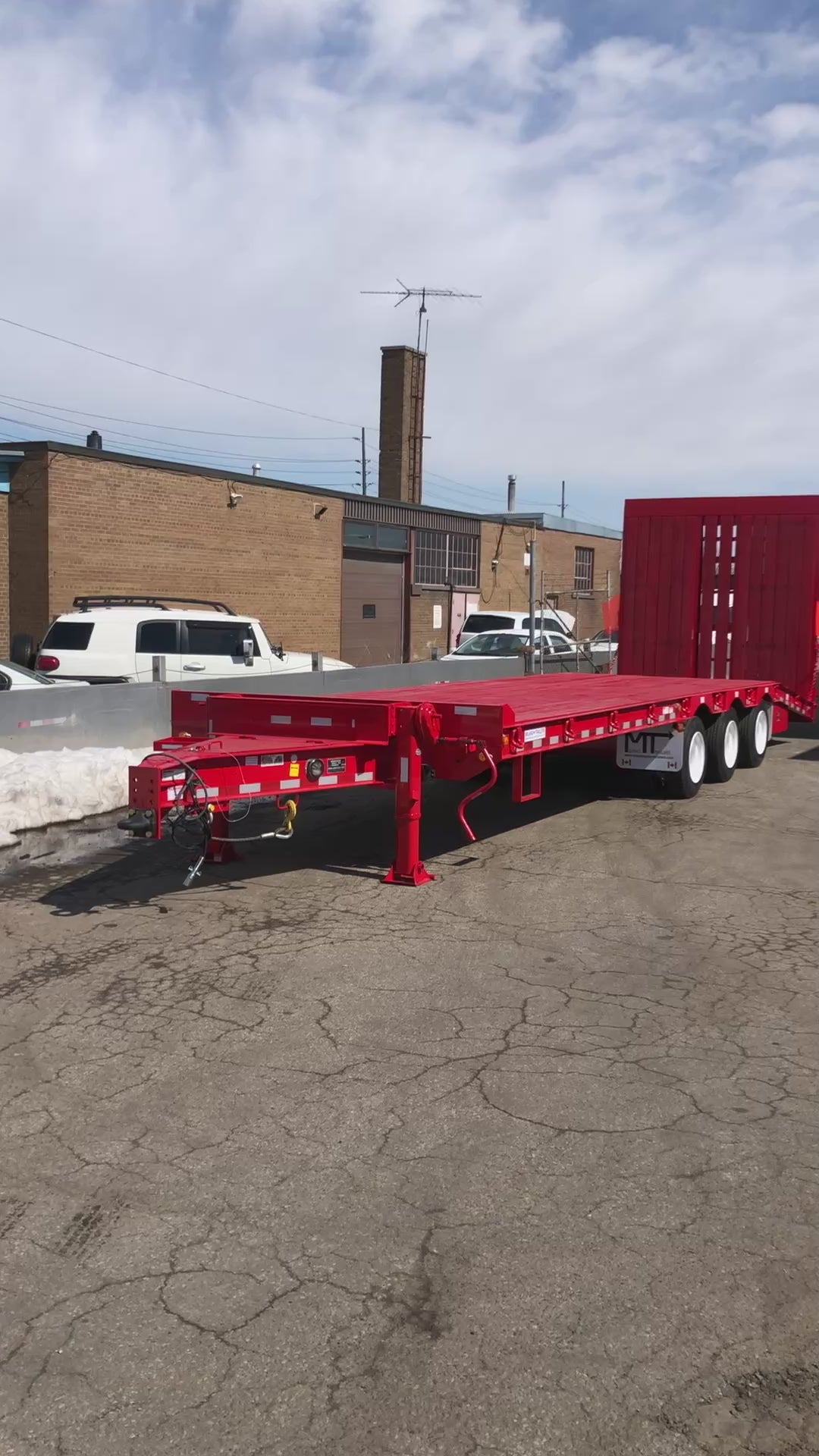

18 Ton Deckover Trailer

Heavy Duty 18 Ton Dual Wheel Trailer

Trailer Features

• Deck Length: 25’ L Flat X 102” W
• Beaver Tail: 5' L X 102" W

• Ramps: 6’ L X 36” W Spring Assist & Ramp Supports
• Ramps: Wood Or Steel Angle Tracking (Choice)
• Trailer Decking: Standard 2" Hardwood & Steel Over Tires
• Lighting: LED Lighting W/ Custom Sealed & Loomed Factory Harness
• Strobe Lights With Switch
• Axles: 15K Dexter Axles (X3 Axles)
• Brakes & Drums : 12.25" X 5" Electric Brakes W/ 8 Bolt Drums
• Suspension: Slipper Springs 3" Wide
• Landing Gear: 50K Jack W/ Drop Down Leg Dual Jack Setup
• Cargo: Steel A-Frame Toolbox On Front Tongue
• Steps On Both Side Of Trailer
• Pylon Holder
• Tie Downs: 3/4" D-Rings
• Safety Chains: 1/2 Grade 70 Chain With 1/2 Hook Latch
• Towing: Adjustable Pintle Ring
• Breakaway System
• Tires Assembly: 215/75/17.5 (16 ply) On 8 Bolt Steel Dual Steel Rims
• Muflaps: Custom White Milano Mudflaps
• Cross Members:  C Channel Spaced Every 12” With Steel Over Tires
• Main Frame:  Heavy Duty High Tensile 10" I Beam

• Paint: Sandblast, 2 Coat Epoxy primer, 2 Coat Urethane Paint
• Document Holder
• Conspicuity Tape Around Whole Trailer

Custom Add On Upgrades & Features If Requested By Customer:

• Custom Hydraulic Ramps

• Hydraulic Jacks
• Galvanized Rims
• Aluminum Rims
• Extra Storage
• Spare Tire Holder
• Custom Pallet/Fork Holder
• 14 Ply Tires
• Winch Track With Webbing Winch & Strap Setup
