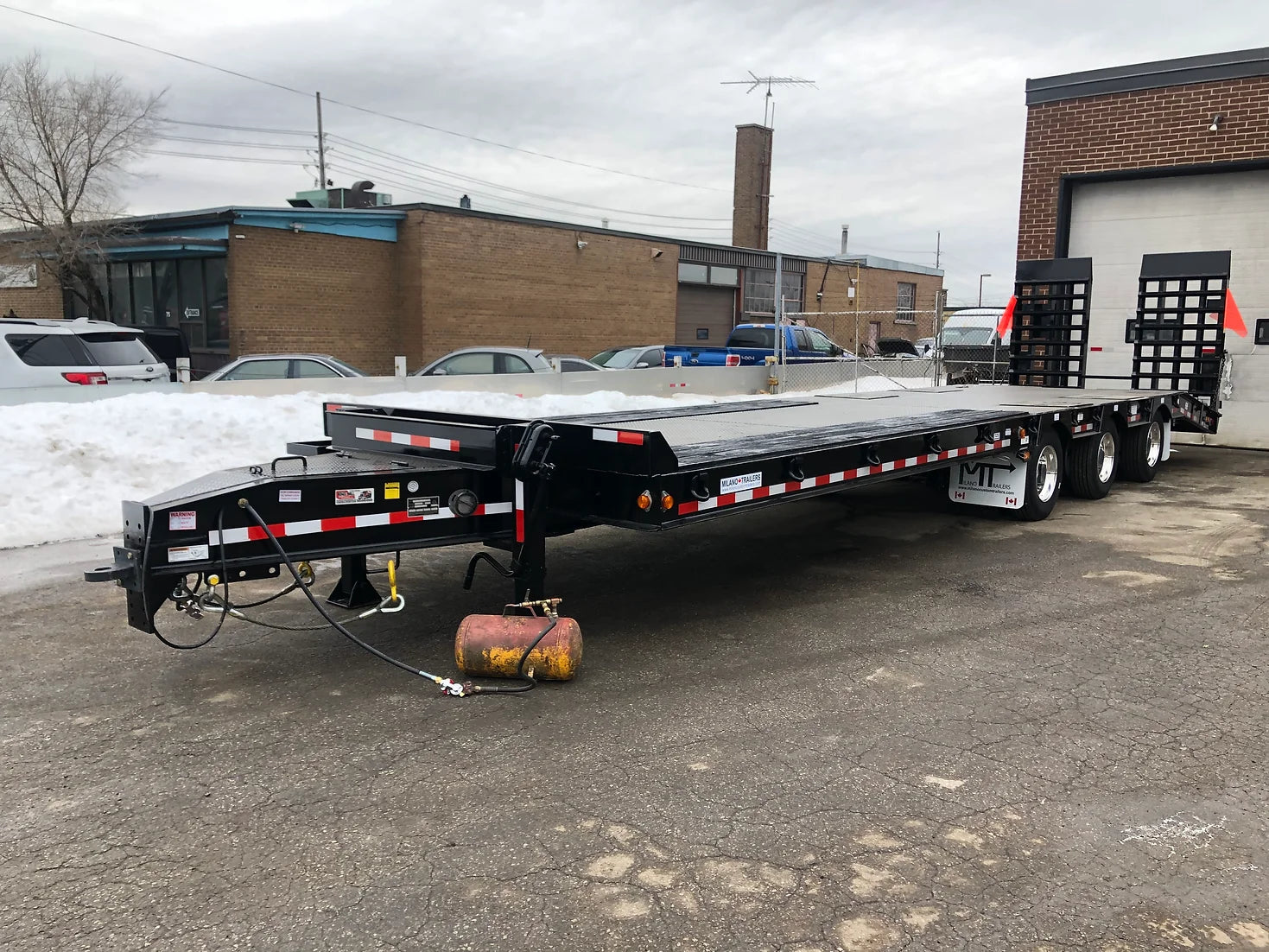

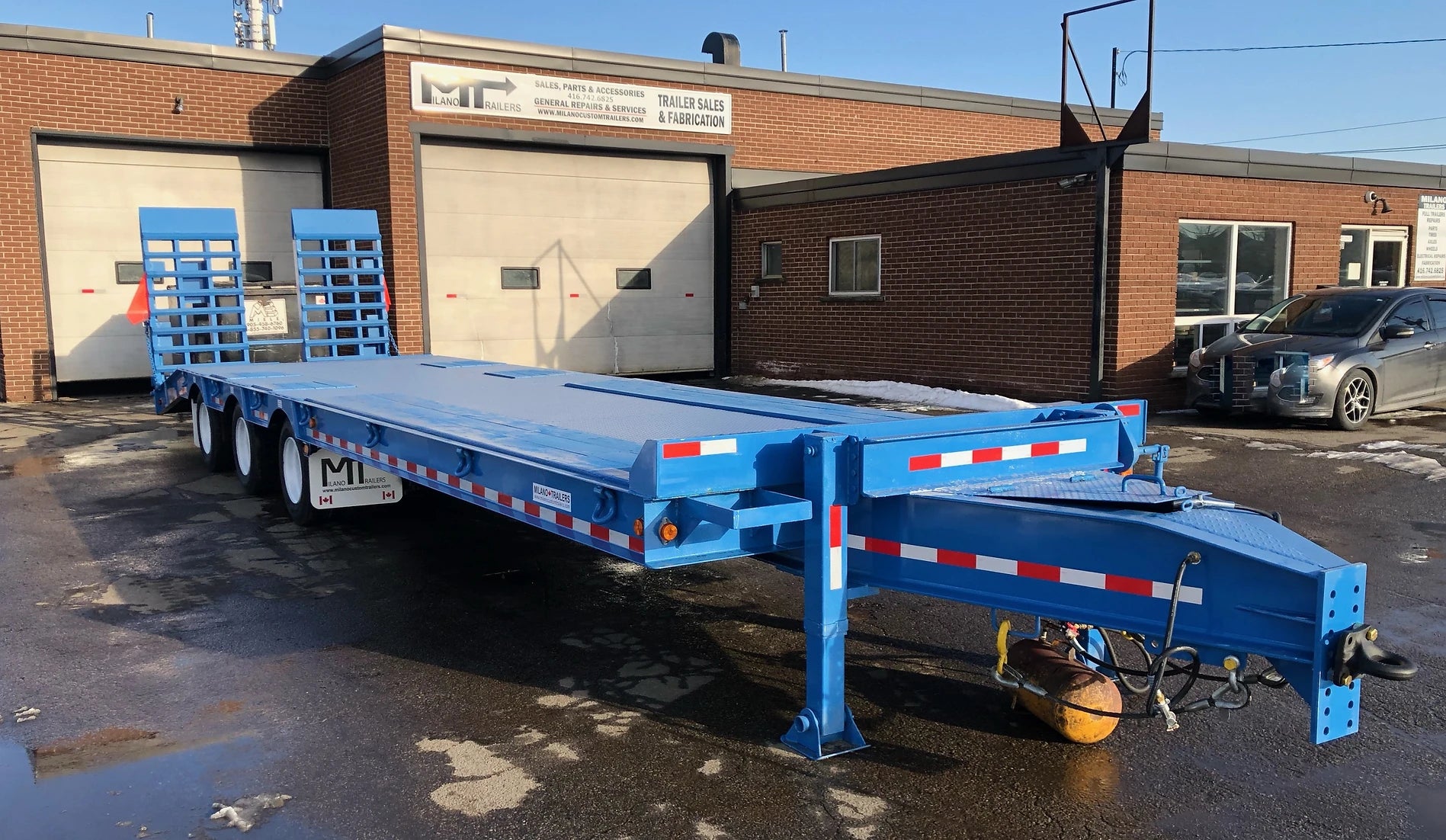

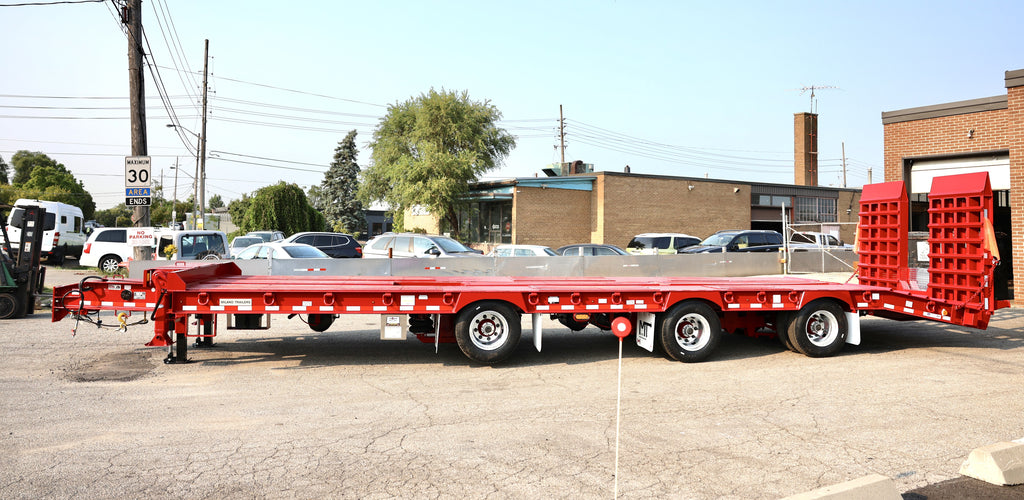

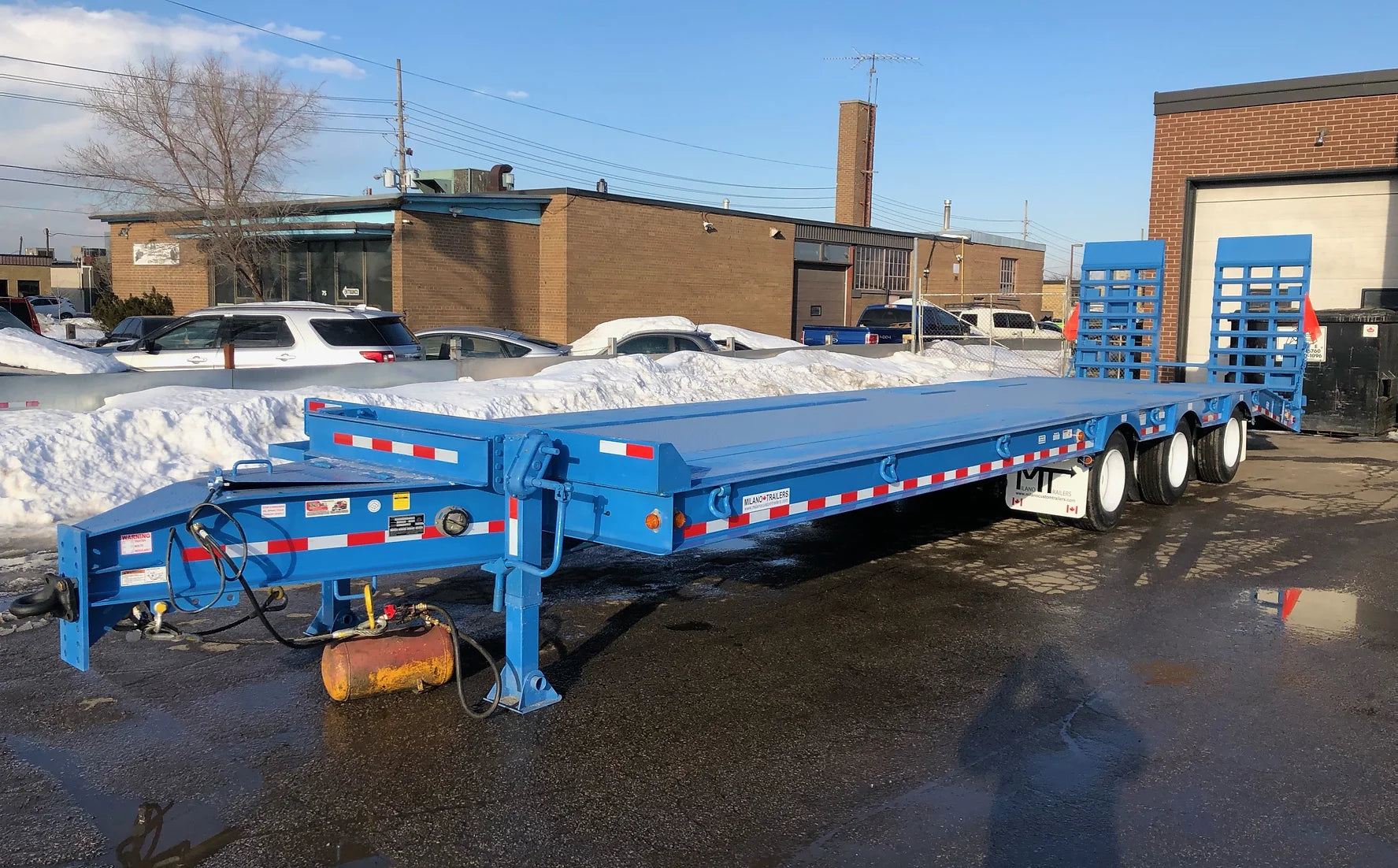

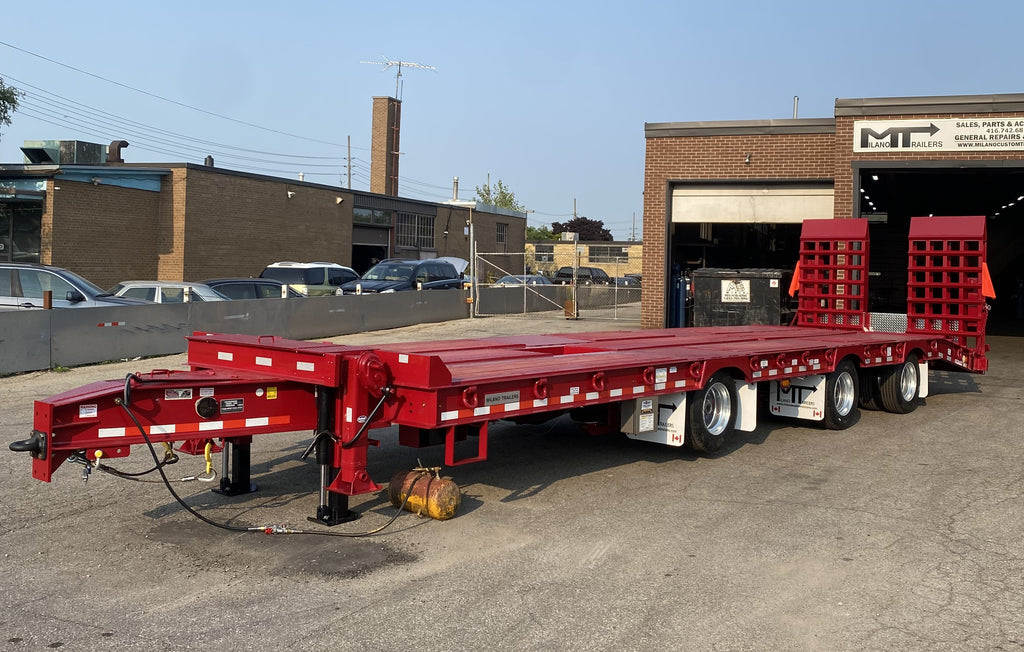

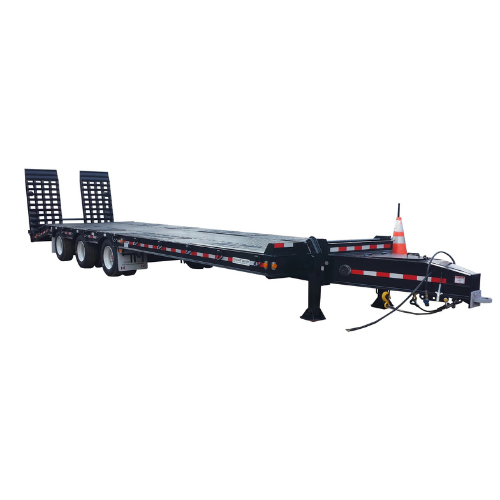

35 Ton Deck Over Excavator HD

Our Heavy Duty 35 Ton Excavator Style Trailer

Trailer Features

• Deck Length: 28’ L Flat X 102” W
• Beaver Tail: 5' L X 102" W

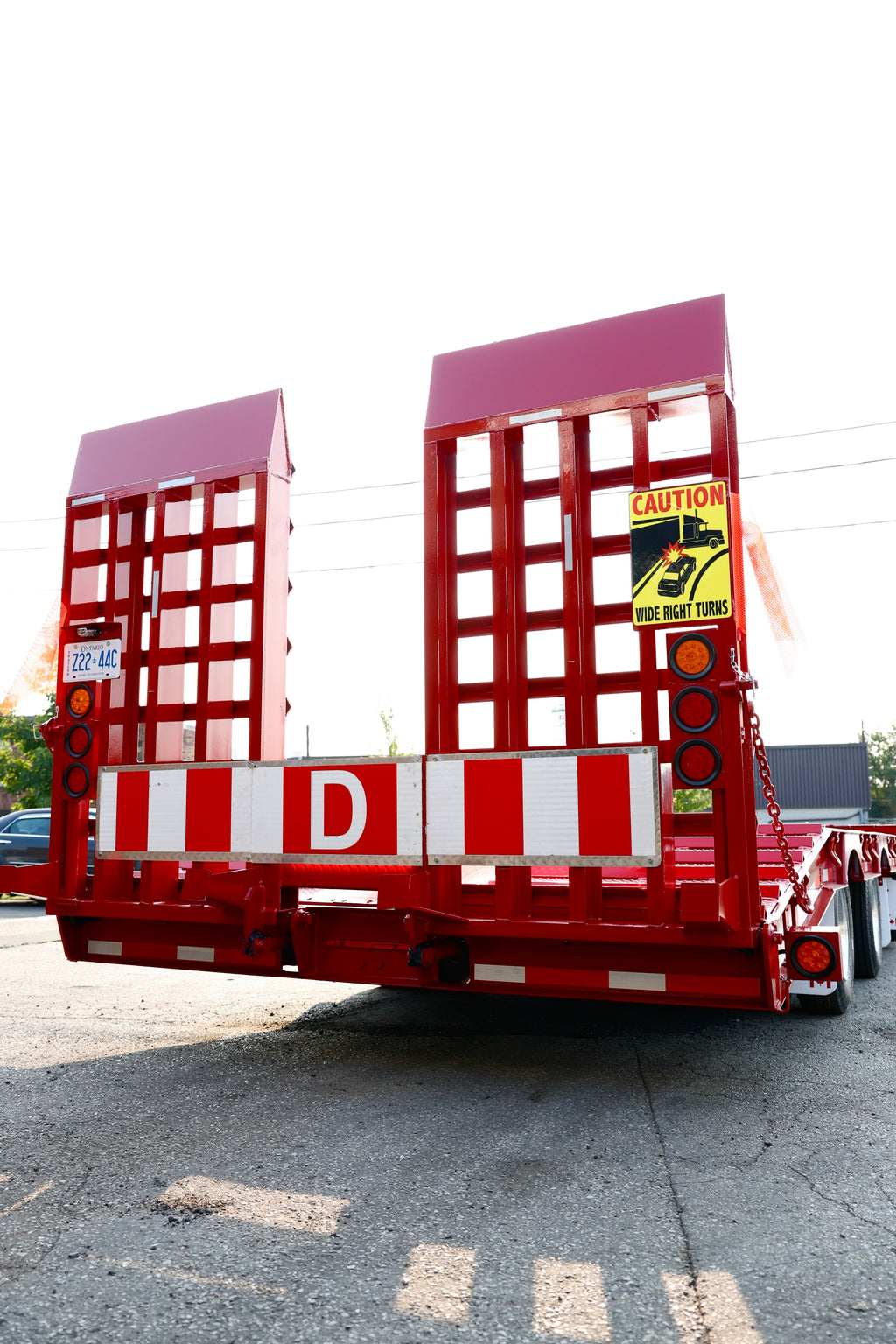

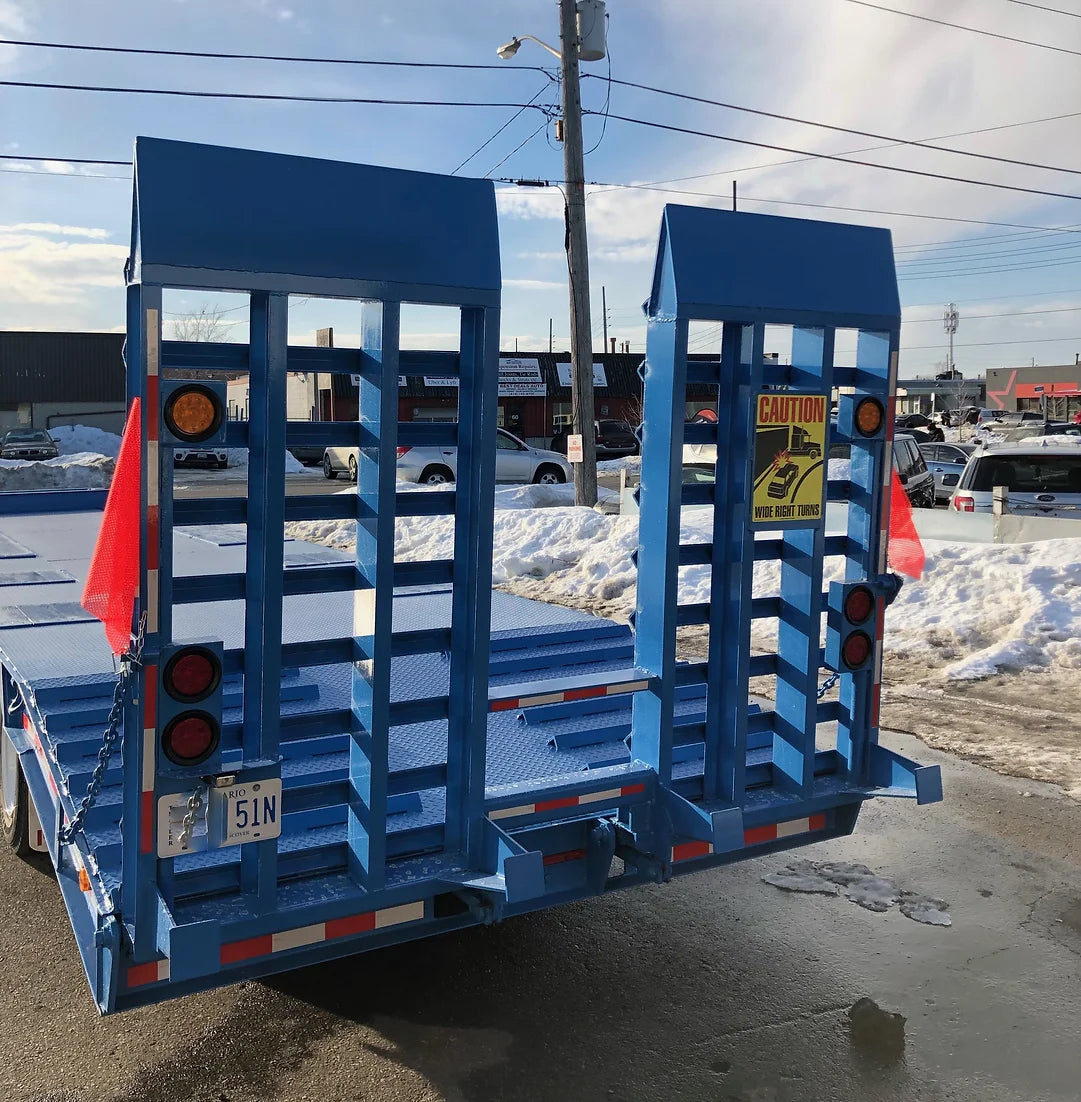

• Ramps: 6’ L X 37” W/ Air Assist & Dual Airbag System & Ramp Supports
• Trailer Decking: 2" Hardwood & Steel Over Tires
• Lighting: LED Lighting W/ Custom Sealed & Loomed Factory Harness
• Strobe Lights With Switch
• Axles: 25K Axles (X3 Axles) With Haldex Abs On Front Axle
• Axle Spread: 60"-72" Or Steel Axle Option
• Deck Height: Approx 34"
• Brakes & Drums : 12.25" X 7.5" Air Brakes W/ 8 Bolt Drums Oil Bathed
• Chambers: Spring Brake 30/30
• Suspension: Slipper Springs
• Landing Gear: Dual Jacks 100K Holland
• Cargo: Steel A-Frame Toolbox On Front Tongue
• Steps On Both Side Of Trailer
• Pylon Holder
• Tie Downs: 1" D-Rings
• Safety Chains: 1/2" Grade 70 Chain With 1/2" Hook Latch/ Safety Cables

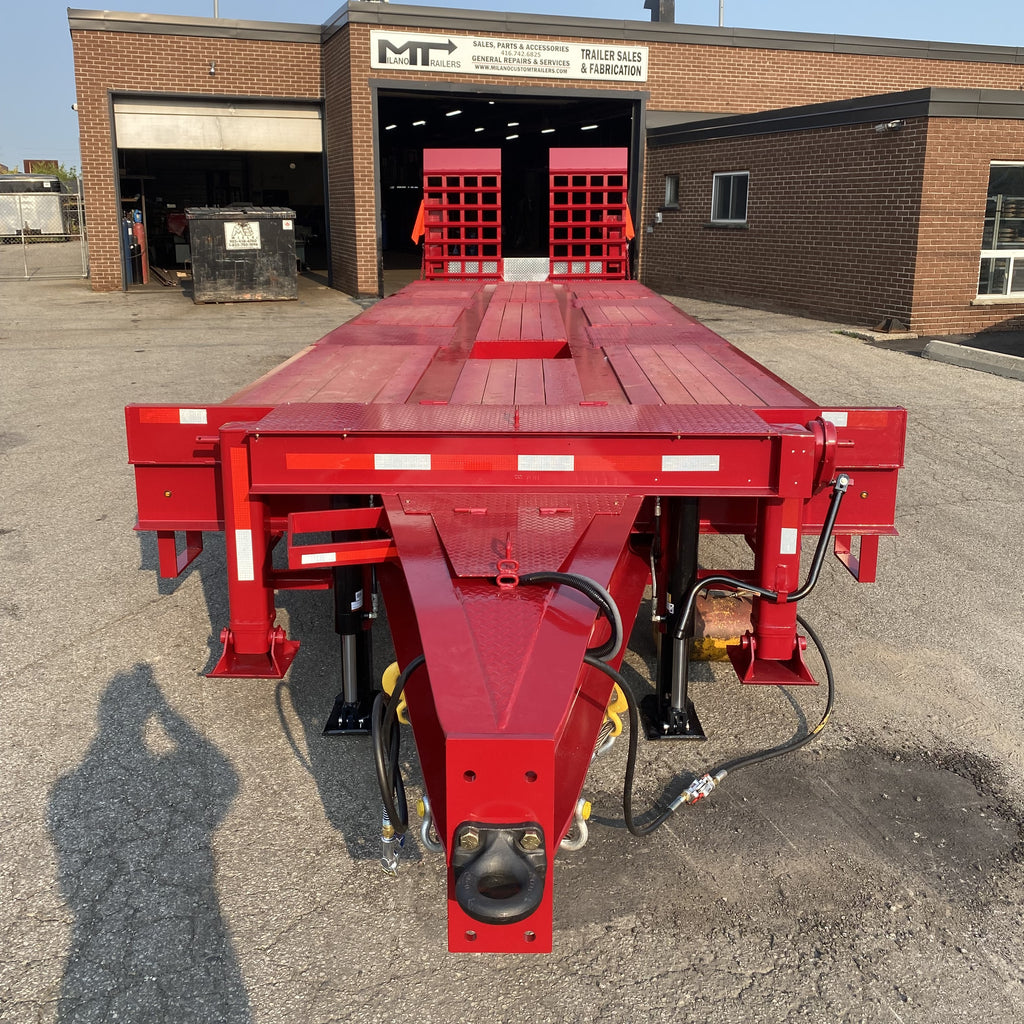

• Towing: Adjustable Pintle Ring
• Flags & Wide Turn Sticker On Ramps
• Tires Assembly: 235/75/17.5 (16 ply) On 8 Bolt Steel Dual White Rims
• Muflaps: Custom White Milano Mudflaps
• Cross Members: 6" C Channel Spaced Every 16-17” With Steel Over Tires
• Main Frame:  Heavy Duty High Tensile 14" I Beam

• Paint: Sandblast, 2 Coat Epoxy primer, 2 Coat Urethane Paint
• Document Holder
• Conspicuity Tape Around Whole Trailer

Custom Add On Upgrades & Features If Requested By Customer:

• Galvanized Rims
• Aluminum Rims
• Extra Storage
• Spare Tire Holder

• Winch Track With Webbing Winch & Strap Setup
• Hydraulic Jacks
• Outriggers
• Full Piece Ramps
