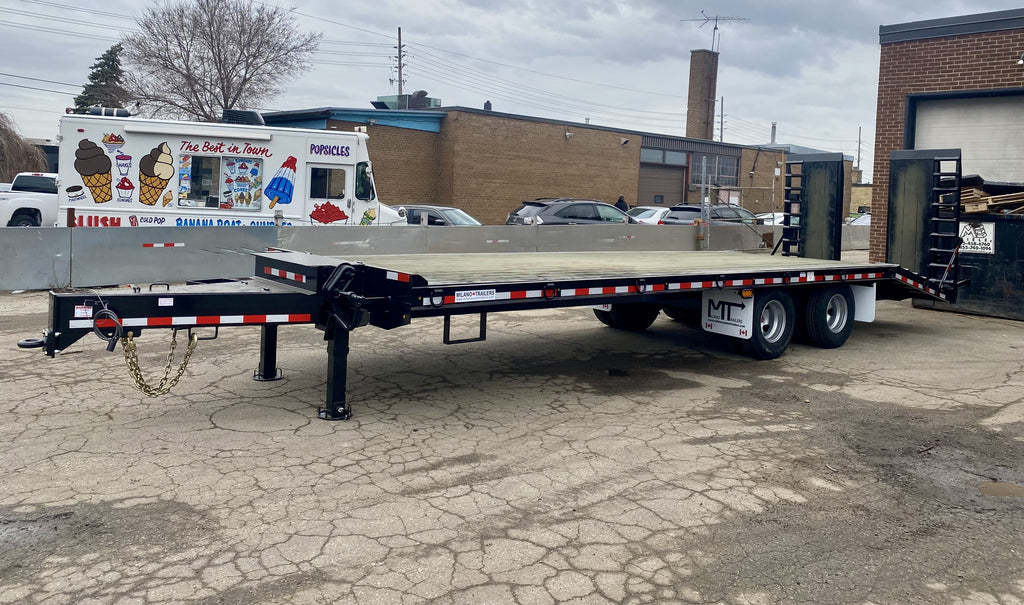

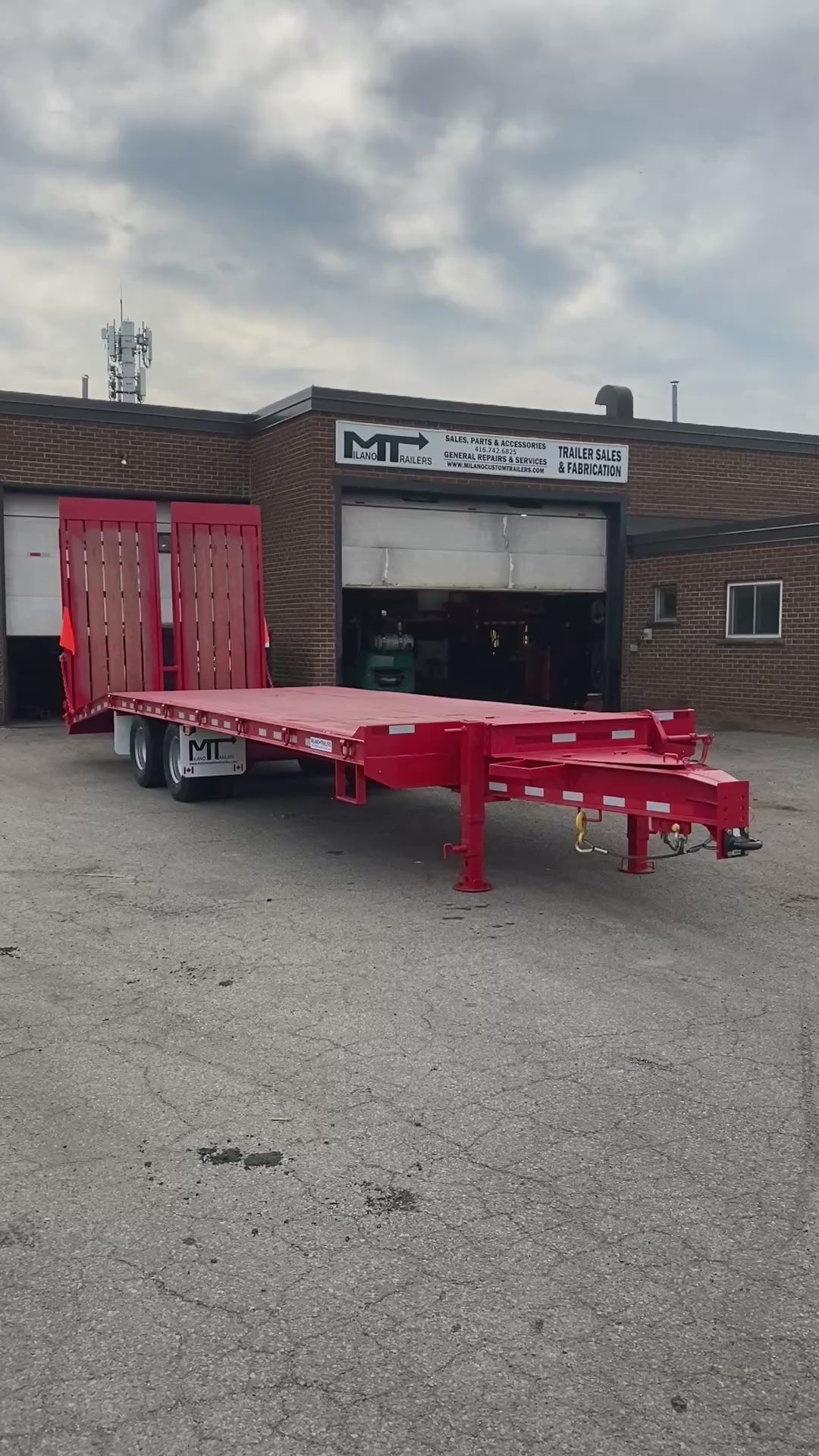

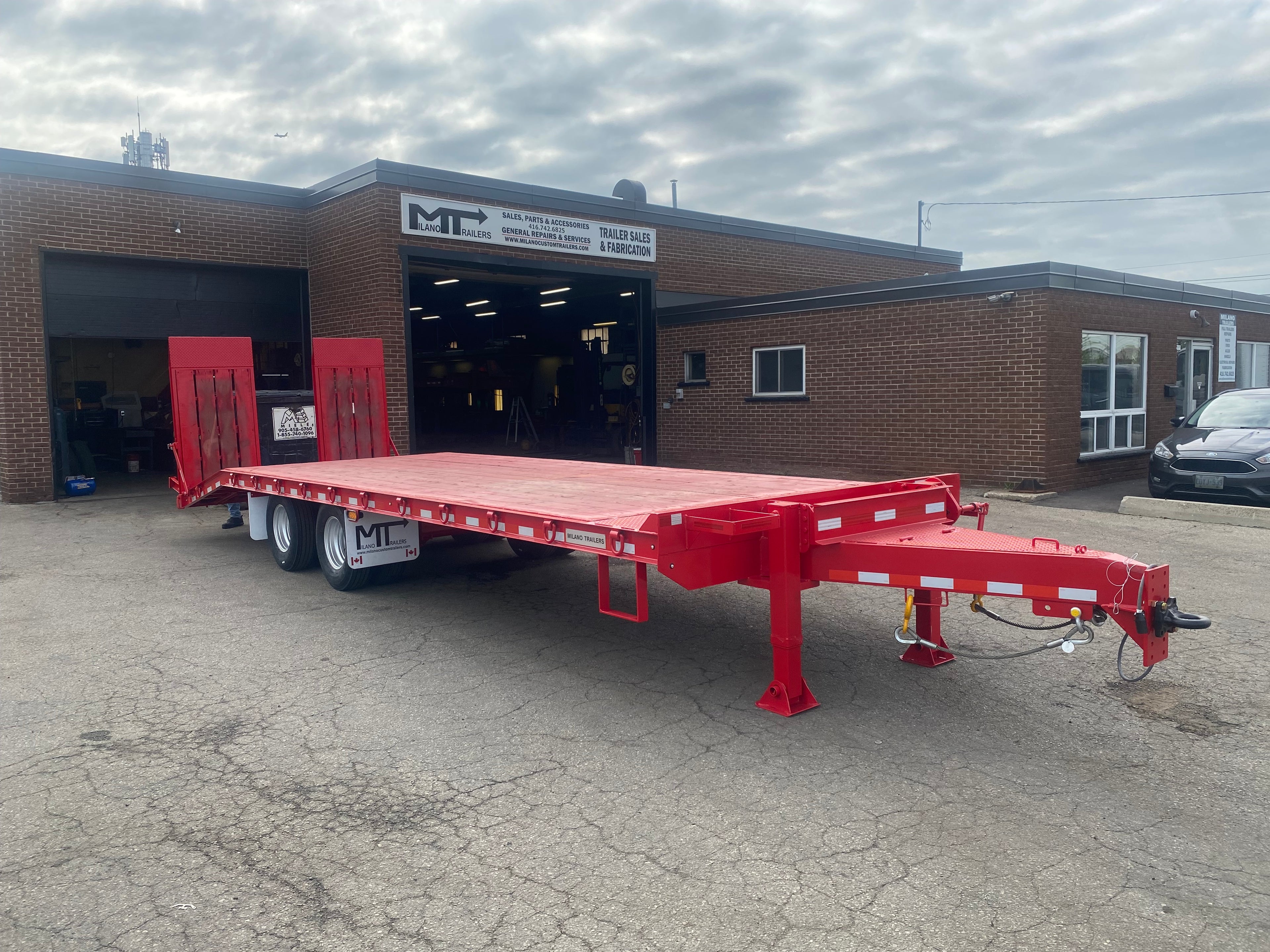

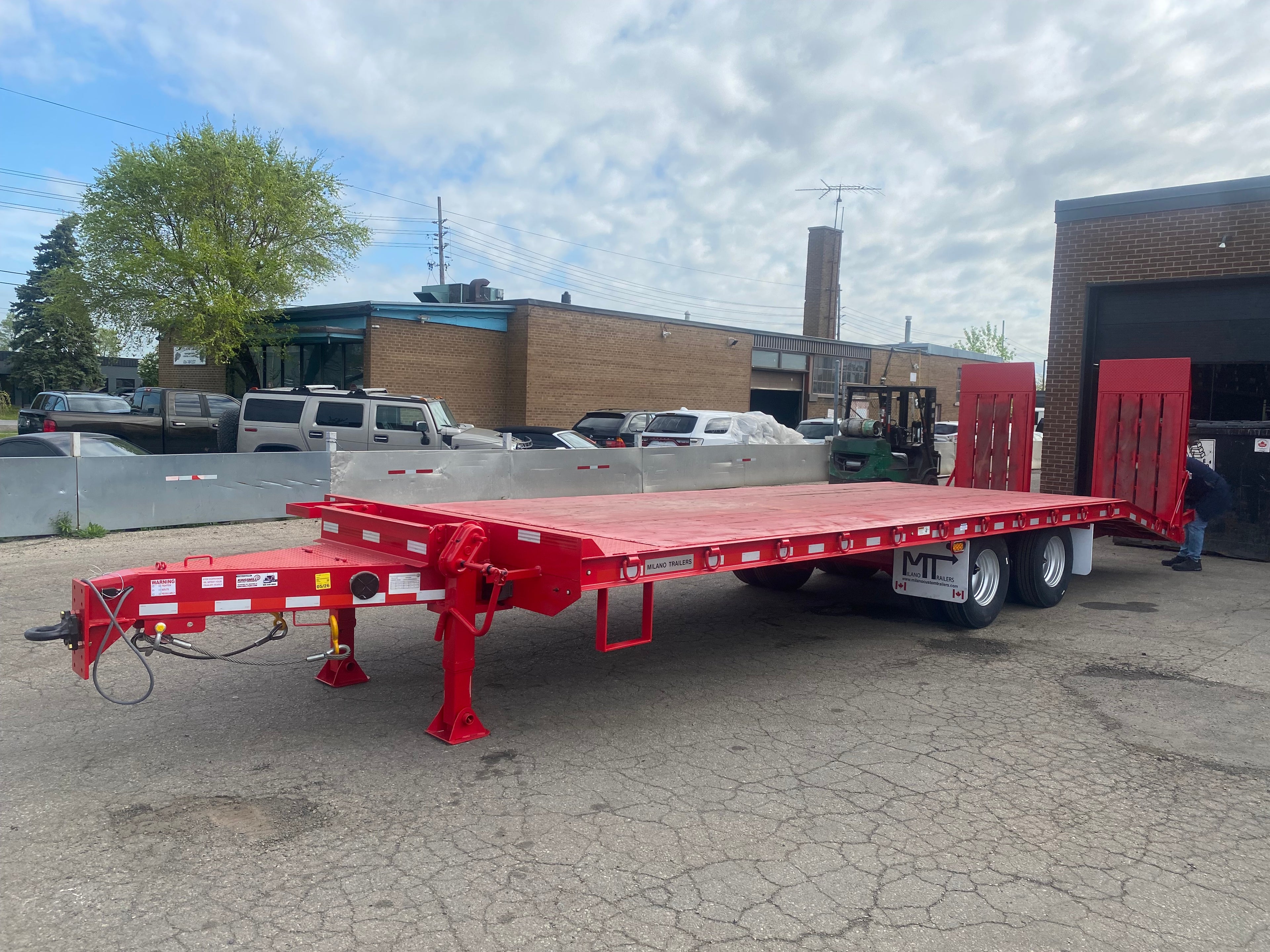

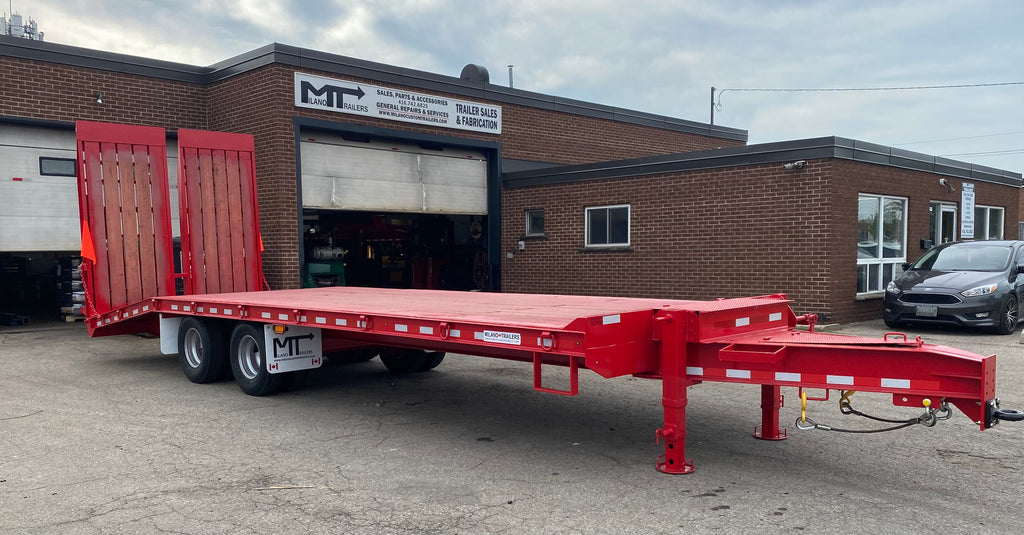

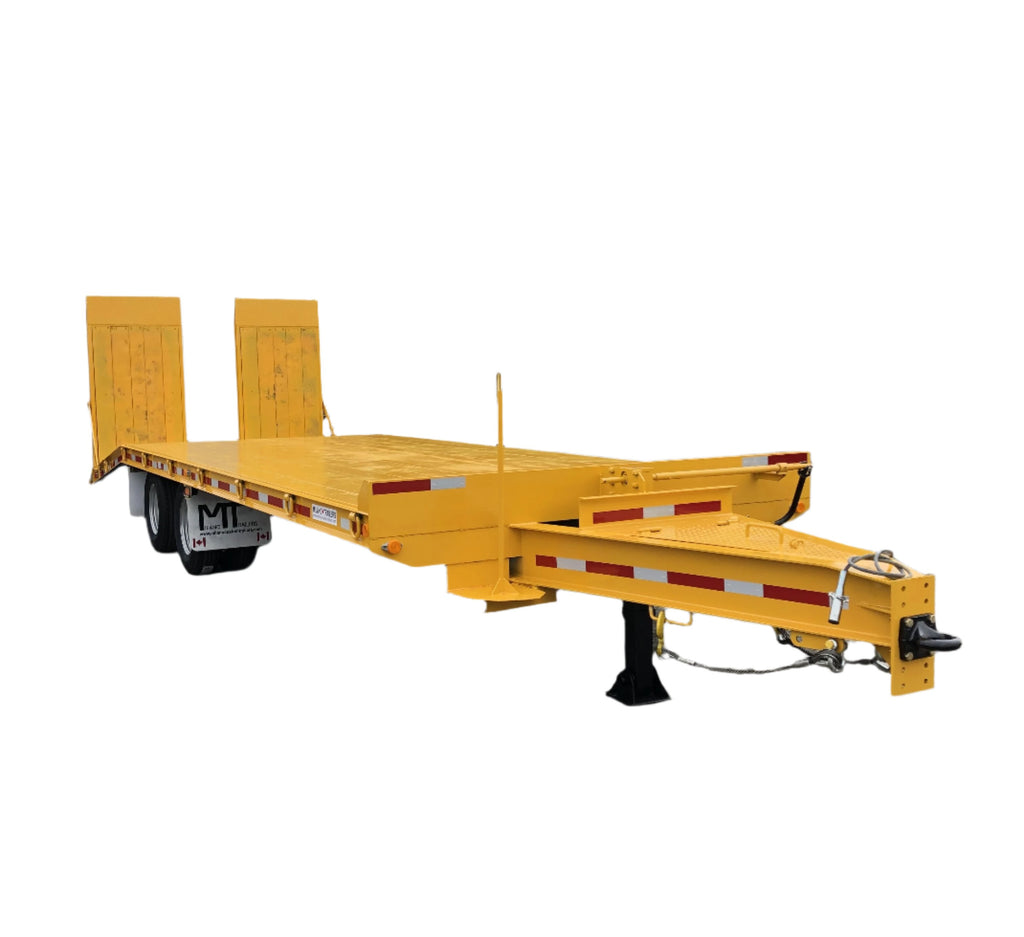

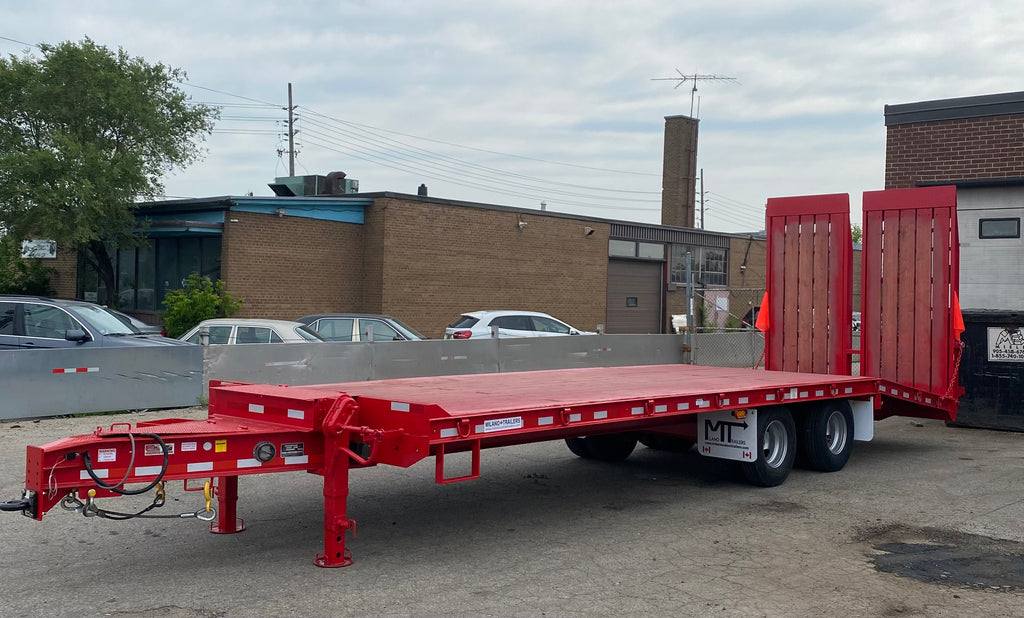

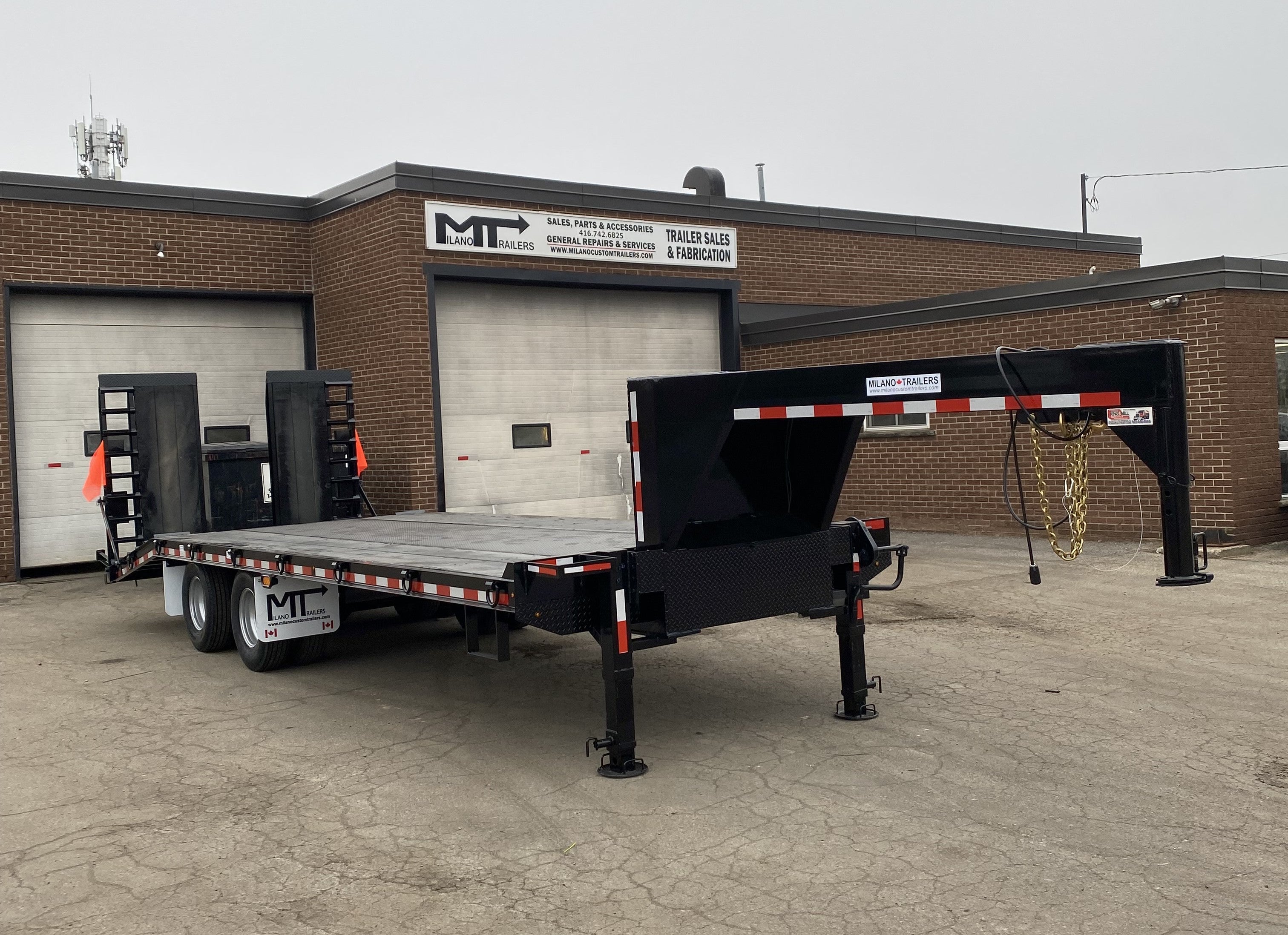

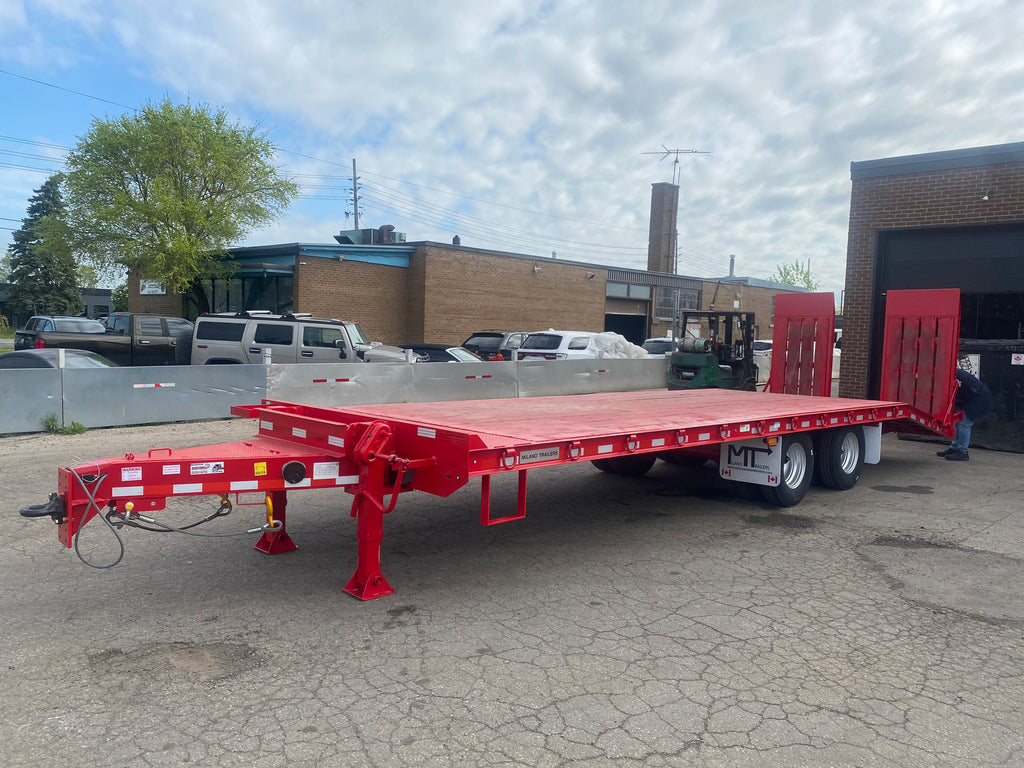

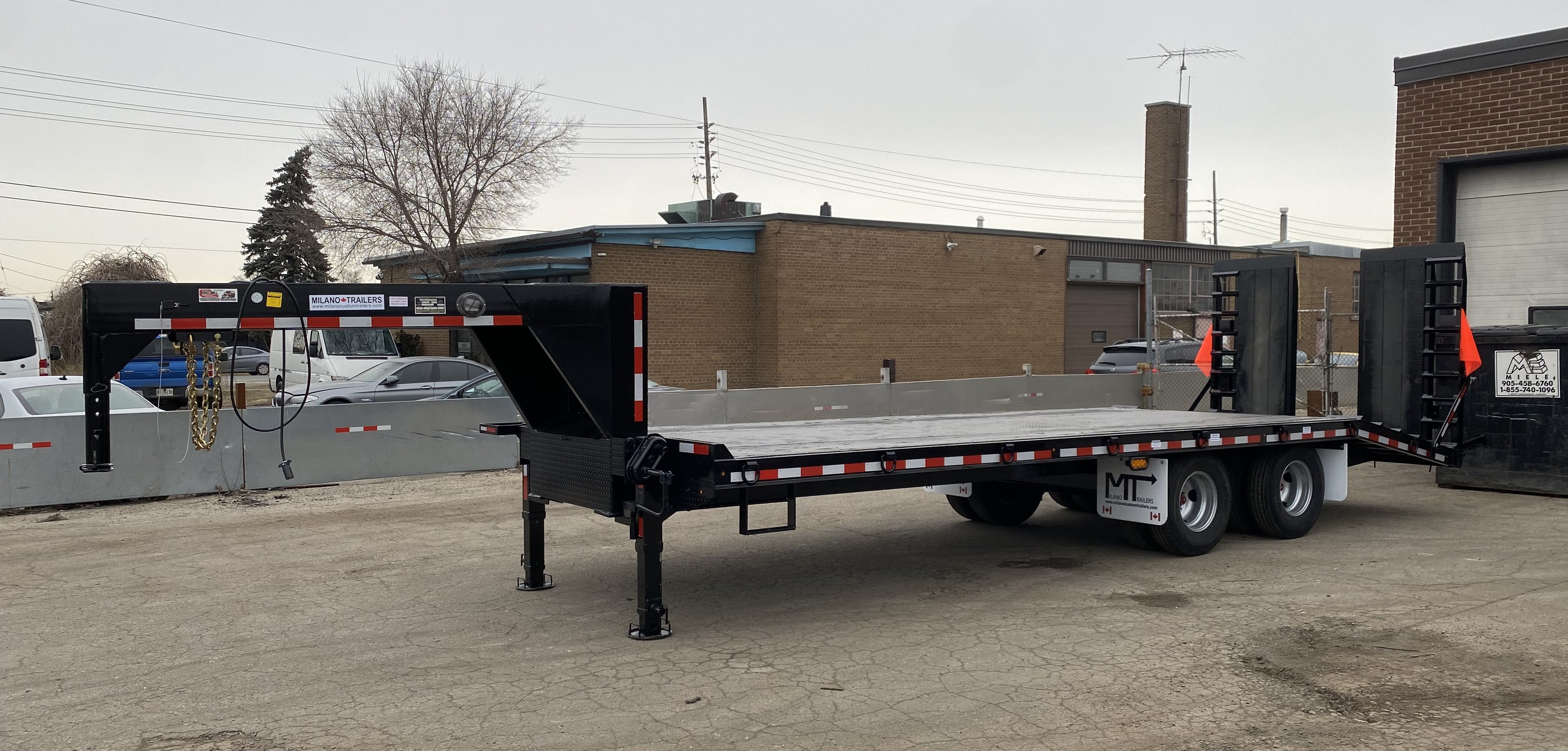

10 Ton Deck Over HD Dual Wheel

Trailer Features

• Deck Length: 20’ L Flat X 102” W
• Beaver Tail: 5' L X 102" W

• Ramps: 6’ L X 36” W Spring Assist & Ramp Supports
• Ramps: Wood or Steel Angle Tracking (Choice)
• Trailer Decking: Standard 1.5" Wood & Steel Over Tires
• Lighting: LED Lighting W/ Custom Sealed & Loomed Factory Harness
• Strobe Lights With Switch
• Axles: 10K Dexter Axles (X2 Axles)
• Brakes & Drums : 12.25" X 3 3/8" Electric Brakes W/ 8 Bolt Drums
• Suspension: Slipper Springs 2.5" Wide
• Landing Gear: 20K Jack W/ Drop Down Leg
• Cargo: Steel A-Frame Toolbox On Front Tongue
• Steps On Both Side Of Trailer
• Pylon Holder
• Tie Downs: 3/4" D-Rings
• Safety Chains: 3/8 Grade 70 Chain With 3/8 Hook Latch
• Towing: Pintle Ring Or Ball
• Breakaway System
• Tires Assembly: 235/80/16 (10 ply) On 8 Bolt Steel Dual Grey Rims
• Muflaps: Custom White Milano Mudflaps
• Cross Members:  C Channel Spaced Every 12” With Steel Over Tires
• Main Frame:  Heavy Duty 10" Beam/Channel

• Paint: Sandblast, 2 Coat Epoxy primer, 2 Coat Urethane Paint
• Document Holder
• Conspicuity Tape Around Whole Trailer

Custom Add On Upgrades & Features If Requested By Customer:

• Custom Hydraulic Ramps
• Dual Landing Gear Setup
• Galvanized Rims
• Extra Storage
• Spare Tire Holder
• Custom Pallet/Fork Holder
• 14 Ply Tires
• Winch Track With Webbing Winch & Strap Setup
• Hydraulic Jacks
